Human Presence Sensor, 인체감지센서, FMCW Radar Module → 1T2R, Range/Velocity/Angle, Tracking



XenP202TS, 1T2R

Featuring the ICL1122 mmWave sensor SoC and movement tracking algorithms,

it enables real-time detection of multiple human positions, distinguishes individual movements, and predicts motion trends.









1.  Image and Features



	Low Power Consumption Range accuracy: 15 cm Angle accuracy: 10 ° Realtime detection of multiple human targets High sensitivity trajectory information of human motion/micromotion Smart Appliances, Smart Bathrooms, Health & Wellness, and Smart Lighting.
30 x 7mm









2.  Specification



Specifications	XenP202TS v3
Development Platform	ARM Cortex M4
Operating Voltage	3.3 V
Operating Current	75 mA
Installation Method	Horizontally
Detection Angle (Horizontal)	120°
Detection Angle (Vertical)	100°
Hardware Size	30 x 7 mm
Operating Frequency	24 ~ 24.25 GHz, SRRC/FCC/CE compliant
Sensor SoC	ICL1122 (1T2R)
Tracked Targets	Up to 3 persons
Detection Range	Up to 10 m
Response Time	0.18 sec
Detection Capability	human motion / micromotion / stationary states
IAP Function	Supports serial port upgrades
Interface	UART, TTL
Data Refresh Rate	16 Hz (maximum)









3. Detection Range

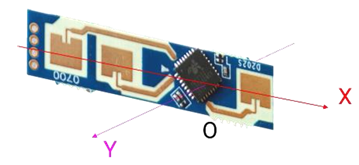

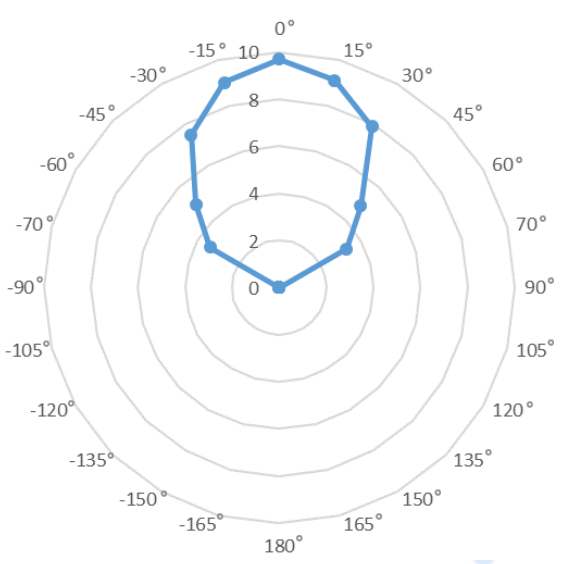

Coordination System	Radiation Pattern(Wall Mount)

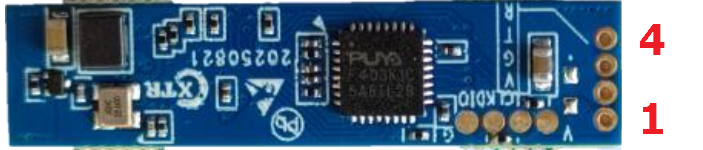

4. PIN Map



UART 연결  → SW Tool을 실행 (Default Baud Rate 256,000 bps)
	PIN No	PIN Name	I/O	Description
	1	R	I	UART RXD
	2	T	O	UART TXD
	3	G	PWR	Power Ground
	4	V	PWR	Power Input, 3V3
	Connector: Header 2.0mm











5. Documents



	§	Brochure
	§ XenP202T Series Product Specifications_Rev.3.1_20251223	Specifications
	§ XenP202T Series User Manual_Rev.3.1_20251223	User Manuals
	§ XenP202T Series Target Tracking	GUI Test Tool
