Human Presence Sensor, 인체감지센서, FMCW Radar Module → 1T2R, Range/Velocity/Angle, Tracking



XenP202TH

Featuring the ICL1122 mmWave sensor SoC and movement tracking algorithms,

it enables real-time detection of multiple human positions, distinguishes individual movements, and predicts motion trends.







1.  Image and Features



	Low Power Consumption Range accuracy: 15 cm Angle accuracy: 10 ° Realtime detection of multiple human targets High sensitivity trajectory information of human motion/micromotion Smart Appliances, Smart Bathrooms, Health & Wellness, and Smart Lighting.
34 x 15 mm











2.  Specification



Specifications	XenP202TH v3
Development Platform	ARM Cortex M4
Operating Voltage	5 V
Operating Current	50 mA
Installation Method	Horizontally
Detection Angle (Horizontal)	140°
Detection Angle (Vertical)	70°
Hardware Size	34 x 15 mm
Operating Frequency	24 ~ 24.25 GHz, SRRC/FCC/CE compliant
Sensor SoC	ICL1122 (1T2R)
Tracked Targets	Up to 3 persons
Detection Range	Up to 10 m
Response Time	0.18 sec
Detection Capability	human motion / micromotion / stationary states
IAP Function	Supports serial port upgrades
Interface	UART, TTL
Data Refresh Rate	16 Hz (maximum)











3. Detection Range

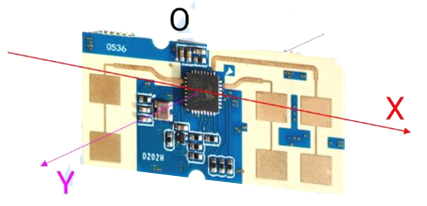

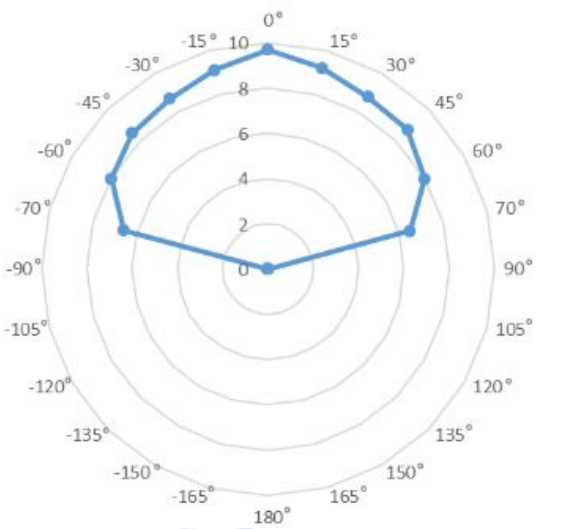

Coordination System	Radiation Pattern(Wall Mount)













4. Reference Schematic



UART 연결  →SW Tool을 실행 (Baud Rate 256,000 bps)

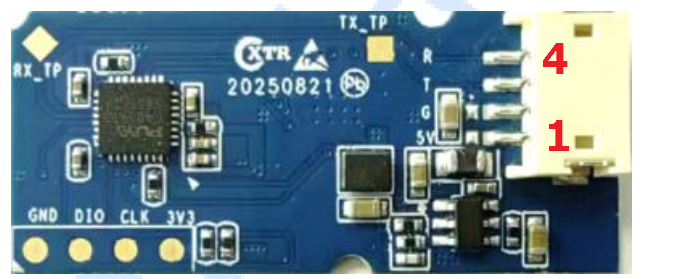

	Pin No	Pin Name	I/O	Description
	1	VCC	PWR	5.0V
	2	GND	PWR	Power Ground
	3	TX	O	UART TXD(3.3V)
	4	RX	I	UART RXD(3.3V)
	Connector:













5. Documents



	§	Brochure
	§ XenP202T Series Product Specifications_Rev.3.1_20251223	Specifications
	§ XenP202T Series User Manual_Rev.3.1_20251223	User Manuals
	§ XenP202T Series Target Tracking	GUI Test Tool
