Long Range Detection, 20meter, 동작감지센서, FMCW mmWave Sensor, Module, 24GHz, 1T1R → 1T1R, Range/Velocity
XendD101MS – Human Motion Detection
Precisely detects moving, micro-moving, and standing human target
1. Image and Features
 |
|
| 18 x 15mm |
2. Specification
| Parameter | Motion | |
| Detection Range | 0.2 m ~ 20 m (adjustable) | |
| Detection Radius | – | |
| Operating Frequency | 24~24.25 GHz, FCC/CE compliant | |
| Operating Voltage | 3.3 V | |
| Operating Current | 42 mA | |
| Sensor SoC | S3KM111L | |
| Interface | UART, GPIO | |
| Dimension | 18 x 15 mm | |
| IAP |

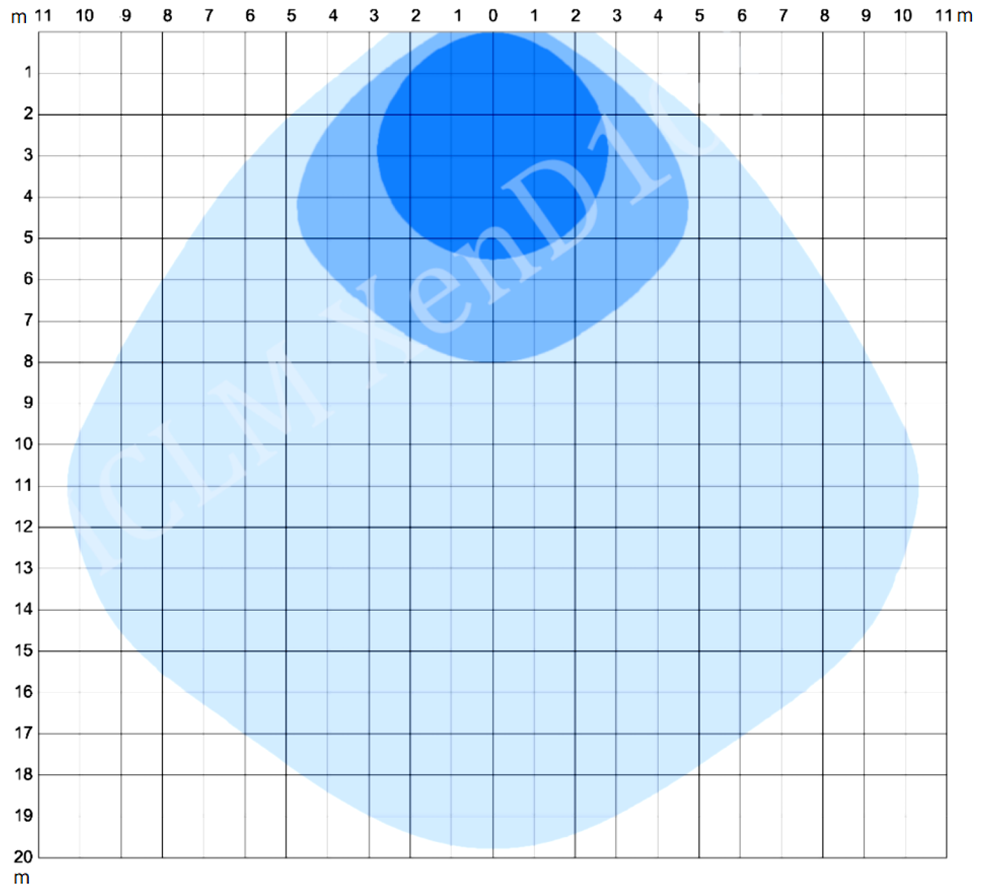

3. Detection Range
 |
 |
|
4. PIN Map
| UART 연결 → SW Tool을 실행 | ||||
| Default Baud Rate → 256,000 bps | ||||
 |
PIN No | PIN Name | I/O | Description |
| 1 | 3V3 | PWR | Power Input | |
| 2 | GND | PWR | Power Ground | |
| 3 | OT1 | O | UART TXD | |
| 4 | RX | I | UART RXD | |
| 5 | OT2 | O | Detection State, High is detected | |
5. Documents and Download
 |
§ XenD101MS User Manual_Rev.1.2 | User Manual |
 |
§ XenD101_MS_Configuration_Tool_v1.2.0.0_ENG | Configuration Tool |
