인체감지센서, 재실센서, Human Presence Sensor → FMCW, 24GHz, 1T1R
XenD107H
Precise real-time human life/presence detection
1. Image and Features
 |
| 20m X 20 mm |
2. Specification
| Parameter | Presence | |
| Detection Range | 5.0m @Presence, 7.0m @ Motion | |
| FOV (H x V) | 120 x 120 | |
| Operating Frequency | 24 ~ 24.25 GHz | |
| Operating Voltage | 3.3 V | |
| Operating Current | 50 mA | |
| Sensor SoC | ICL1112 | |
| Interface | UART, GPIO | |
| Dimension | 20mm x 20mm | |
| IAP | Upgradable with UART |
3. Detection Range
 |
 |

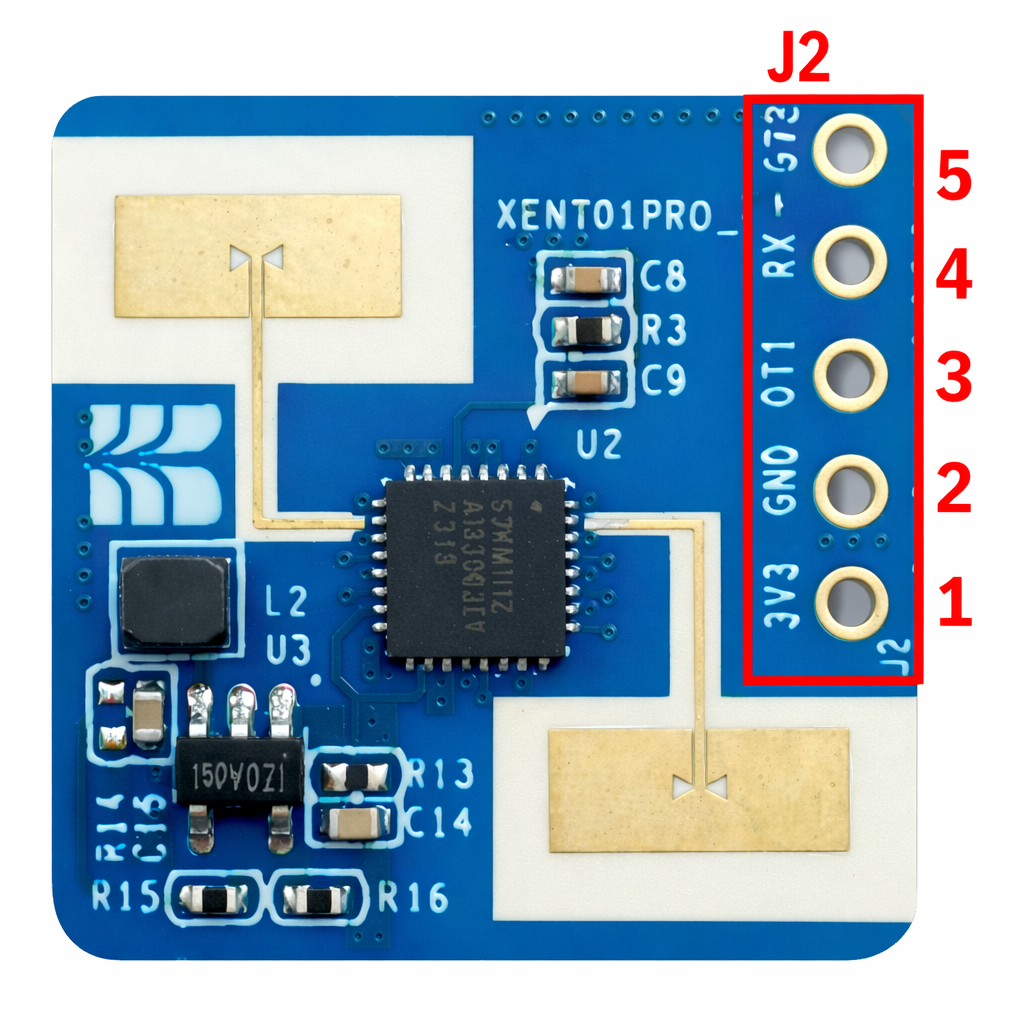

4. PIN Map
| UART 연결 → SW Tool을 실행 | ||||
| Default Baud Rate → 921,600 bps | ||||
 |
PIN No | PIN Name | I/O | Description |
| 1 | 3V3 | PWR | Power Input, 3.3V | |
| 2 | GND | PWR | Power Ground | |
| 3 | OT1 | O | UART TXD | |
| 4 | RX | I | UART RXD | |
| 5 | OT2 | O | Detection State, High is detected | |
5. Documents and Download
 |
§ XEND107H_Brochure_202410 | Brochure |
|
§ XenD107H User Manual_Rev.1.1_20231214 | User Manual |
 |
Test Tool |
